BABOOM OEM cd player with harness

[labeledsk8r]

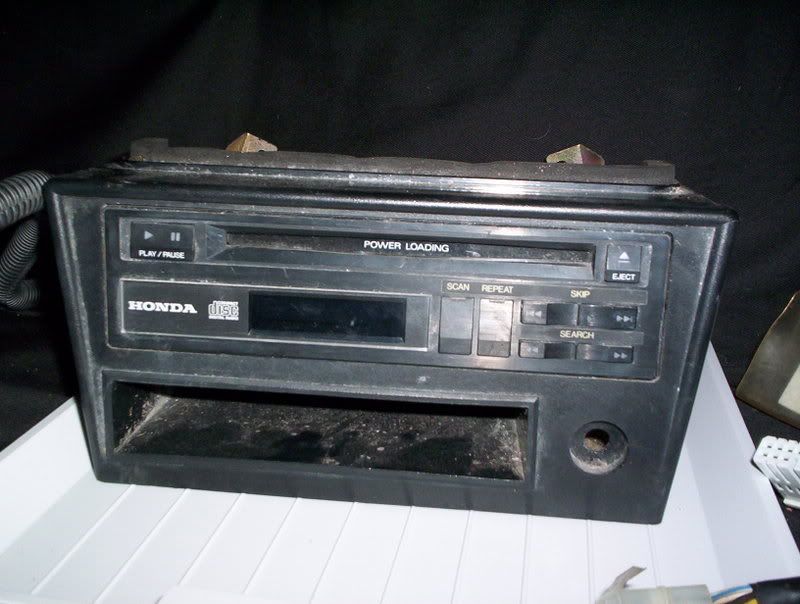

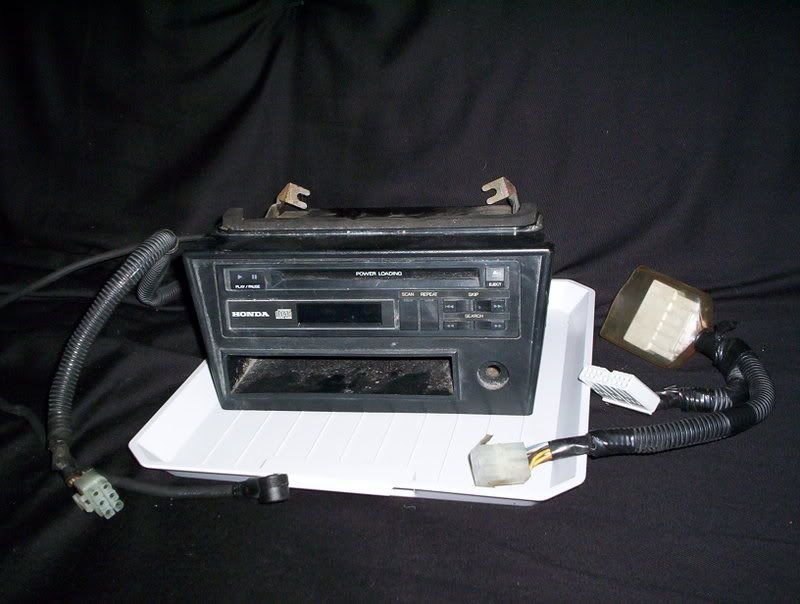

Thats right i have the oem cd player and even was able to get my hands on the factrory wireing harness so its all plug and play, i havent cleaned it yet but should clean up nicely. heres some pics.

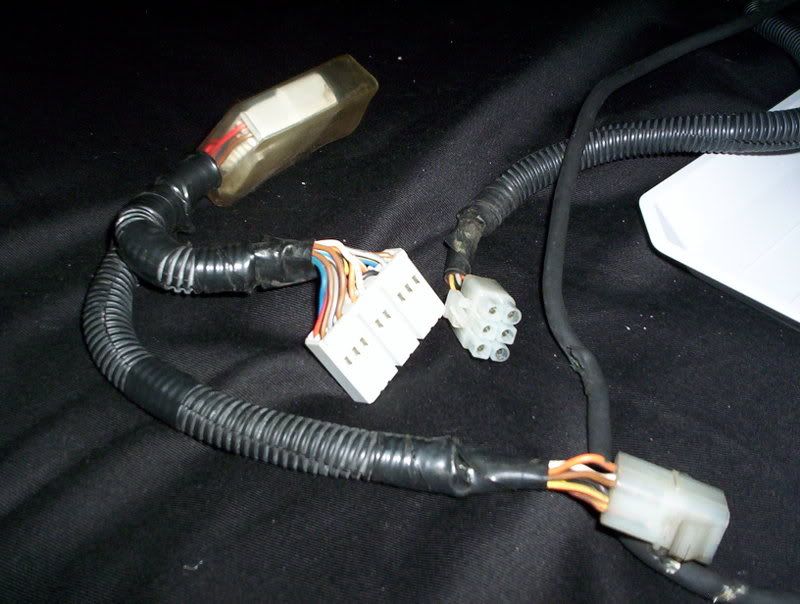

heres the oem plug and play harness (anyone needing wire colors to wire theres let me know)

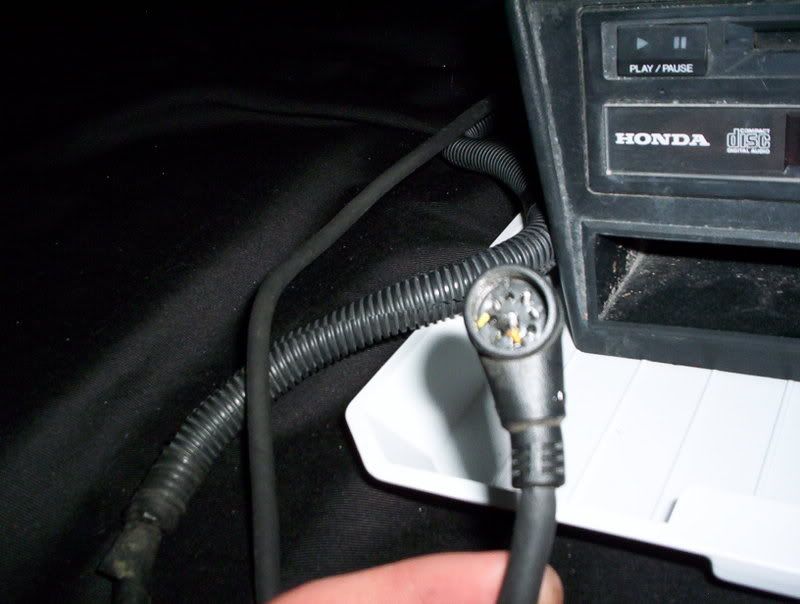

and heres the only big problem... the prong plug was riped out of it... i figured i could wire in a new one... just need to find the wire setup so i know wich wire is wich



i will post new pics when i clean it up.... and um if anyone has the diagram for the prong plug let me know... i will be looking for a new plug to re-wire into it

[Civic Accord Honda]

looks good man
sucks about the prongs though

[forrest89sei]

Should be just like this diagram frantik posted for the EQ's



either the EQ or the CD Player plug into the HU using the same cable, or if you have both the EQ plugs into the CD player then the CD player to the HU

[BITESIZE]

You should be able to put on a new end plug.

[frantik]

yeah i'll trade you my 8 pin DIN diagram (the one forrest showed you) for your harness diagram lol

where'd u get the harness?

[forrest89sei]

yeah i'll trade you my 8 pin DIN diagram (the one forrest showed you) for your harness diagram lol

where'd u get the harness?

he got it off the car, was still intact :O

[frantik]

damn lucky

i should have grabbed me a harness when i was at the JY yesterday.. looks like all i need is one of those adapter thingies for after market decks and a stock harness and just wire them together. i will have to cut the EQ harness unless i can find a plug like that, which i really doubt i can

[lostforawhile]

Thats right i have the oem cd player and even was able to get my hands on the factrory wireing harness so its all plug and play, i havent cleaned it yet but should clean up nicely. heres some pics.






heres the oem plug and play harness (anyone needing wire colors to wire theres let me know)




and heres the only big problem... the prong plug was riped out of it... i figured i could wire in a new one... just need to find the wire setup so i know wich wire is wich



i will post new pics when i clean it up.... and um if anyone has the diagram for the prong plug let me know... i will be looking for a new plug to re-wire into it

it's probably an alpine unit they all have the same plug.if you want just hardwire it figure out where the index pin is on the tore up plug and transfer the wires one at a time. if you were closer i would just put a molex plug on it,no one sees the back anyway. that plug is called a DIN plug by the way. european audio gear uses them extensivly, which is why alpine uses them. let me look at mouser.

[lostforawhile]

hey look at the other end it plugs into and tell me how many pins there are try and take a pic.i can find you the plug may just take a little while

[lostforawhile]

see if any of these match up to pins http://www.alliedelec.com/Search/Sea...C356806810617F

[labeledsk8r]

yeah frantic soudns good i will get that done sometime tonight or so so you can get yours wired up... the funny thing is... i found the cd player last week... and didnt think about the harness till reading your thread.. so i went back and the car was gone... i went to the guys there and talked to them and they said they moved it to the crushing section (off limites) he let me and andrew in.. and we found it in the line to get crushed lol if i woulda went tomarrow i wouldnt have it

and yeah lost i knew i could make a new pin plug and take a pic for what?? i dont need any plug.... unless your talking about for frantik ???

[frantik]

the plug is an 8 pin DIN plug, Lost

and damn thats a crazy story bout the harness.. good job getting it w00t

from the looks of things the colors of the wires on the CD player are the same as the colors on the harness right?

[labeledsk8r]

the plug is an 8 pin DIN plug, Lost

and damn thats a crazy story bout the harness.. good job getting it w00t

from the looks of things the colors of the wires on the CD player are the same as the colors on the harness right?

let me take the tape and wire sleves off right now and check... get back to you on it in about 10 minutes or less with a diagram

[frantik]

w00t

[labeledsk8r]

ok well... im on a laptop and im normaly a paint master... but the lappy is puissing me off.... so ima need a bit more time to draw it up... its kinda a weird wireing so meh i will get it done just need a bit more time... and yes the colors are the same... but some double back and some are only from the cd player harness to the plug....

[frantik]

cool.. take your time.. or just take a clear pic of the wires even.. or both lol

[labeledsk8r]

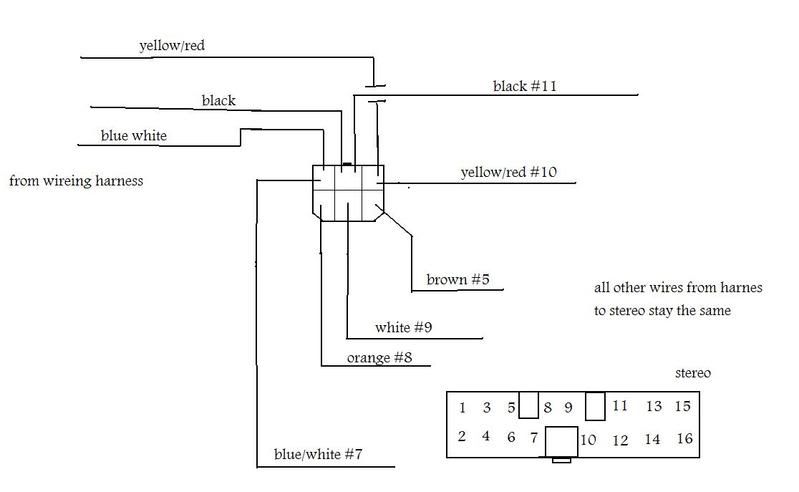

ok heres a fast sketch on a laptop.... i will make a FULL harness drawing once i get my desktop up and running... this is a disgrace compaird to what i can normaly draw on paint lol.... note the numbering isnt to stock numbering... just done this way to make it easyer on me while doing this on a laptop....





**edit** and frantik, on the plug on my harnes. the pins inside the 6 plug have the same pins as a molex conector from a computer... so i can make you a plug and play harnes so you have to cut NOTHING at all just look for male molex conectors at any wireing or computer shop and they will plug right into each hole on the cd player plug

[snoopyloopy]

sweet. lucky bastards w/ the oem goodness. although i suppose the cd player i have now is decent for a stockie.

[labeledsk8r]

sweet. lucky bastards w/ the oem goodness. although i suppose the cd player i have now is decent for a stockie.

only lucky thing i have had happen to me in a while... so i dont really call it much luck.... lol but i hope to get this thing installed in the next few days... just need to find a EQ or sometihng that i can rip a new DIN pin off of

[Civic Accord Honda]

only lucky thing i have had happen to me in a while... so i dont really call it much luck.... lol but i hope to get this thing installed in the next few days... just need to find a EQ or sometihng that i can rip a new DIN pin off of

http://cgi.ebay.com/ebaymotors/Honda...spagenameZWDVW
http://cgi.ebay.com/ebaymotors/93-Ho...spagenameZWD1V

[labeledsk8r]

http://cgi.ebay.com/ebaymotors/Honda...spagenameZWDVW
http://cgi.ebay.com/ebaymotors/93-Ho...spagenameZWD1V

damn you cah , damn you and such

[frantik]

and frantik, on the plug on my harnes. the pins inside the 6 plug have the same pins as a molex conector from a computer... so i can make you a plug and play harnes so you have to cut NOTHING at all just look for male molex conectors at any wireing or computer shop and they will plug right into each hole on the cd player plug

cool i was thinking there had to be some other kind of plug which shared the connector. i'll keep a look out for the DIN connector when i find that one

on your diagram where are the yellow/red, black and blue/white wires going to? they are the ones which run from the car to both the stereo and the cd player while the other three wires just run from the car to the CD player right?

[labeledsk8r]

cool i was thinking there had to be some other kind of plug which shared the connector. i'll keep a look out for the DIN connector when i find that one

on your diagram where are the yellow/red, black and blue/white wires coming from?

from the cars harness.... those are the only 3 that go into the cd player.... i will try to get a FULL digram drawn tomarrow when i have a desktop computer to sit at lol

[frantik]

so the brown, white and orange wires only run from the CD to the radio, or the Cd to the car?

[labeledsk8r]

so the brown, white and orange wires only run from the CD to the radio, or the Cd to the car?

cd to car... all the wires go CD player to car... but those 3 run from the harness... to cdplayer then double back to the stereo.... i think ima have to make a full diagram lol.....this one was kinda useless..... and seems to have aot ogf missing parts.. so i will try to get one done... i can draw one on paper... but i dont have a scaner... and doing it on the laptops little pad pos is way to hard
