    Started my wire tuck, sort of

    Well, this isnt your typical wire tuck, im just trying to solve some issues with my electrical system and decided to clean up some wiring mess. I pretty much had the whole harness rebuilt from scratch.

    I cant do full tuck unless I start drilling random holes to run my wires to the inner fenders. Plus there isnt much I can do unless I move my battery to the trunk, which is something I'm considering someday since I'm really short on cash at the moment.

    Dont expect too much from this as the main goal for this is to fix my electrical issues.

    Supplies.

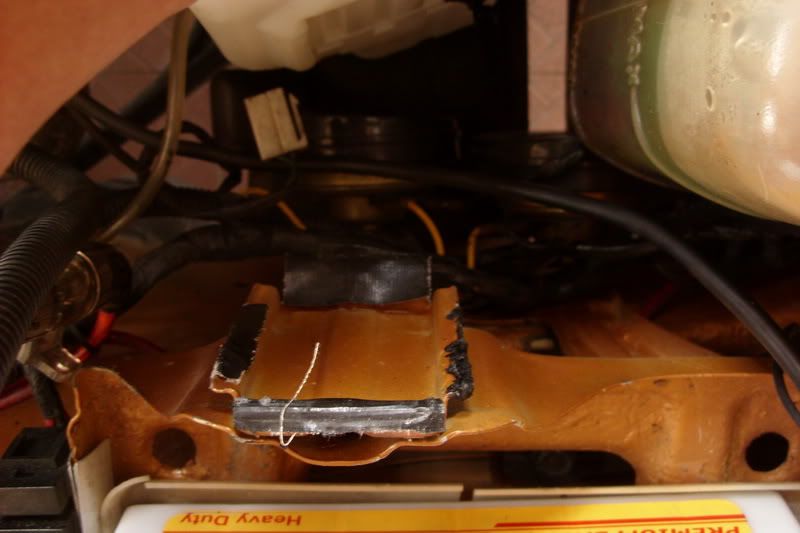

    You cant see much here but theres 3424324 wires underneath the washer reservoir




    Slight mess








    Battery removed and the work has begun!





    1986 Honda Prelude build thread
    1981 Honda Accord (sold)
    Reply With Quote Reply With Quote



  2. 10-22-2009, 11:30 AM #2
    Hazwan
    Hazwan is offline
    2.0Si User Hazwan's Avatar
    Join Date
    Feb 2006
    Vehicle
    86 Honda Prelude
    Location
    Malaysia
    Posts
    3,846

    Re: Started my wire tuck, sort of

    My assistant


    Few mins later >.<

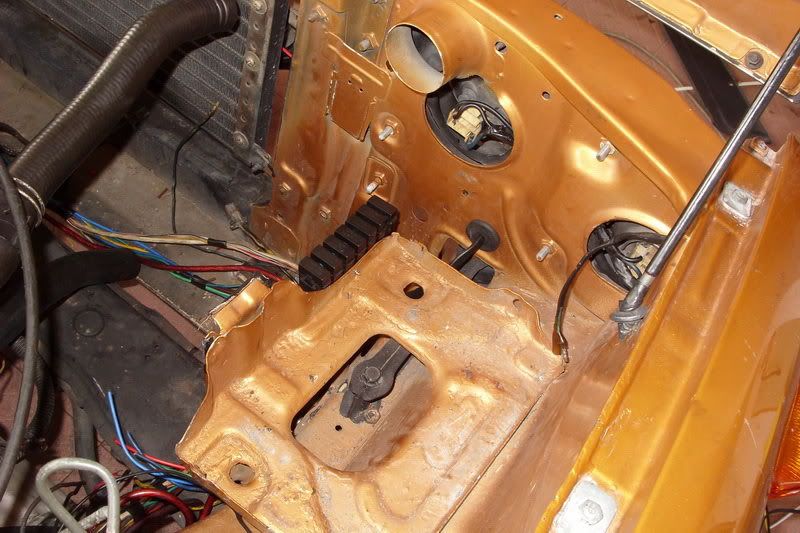

    I moved the stock wires running across the firewall to the front, underneath the radiator

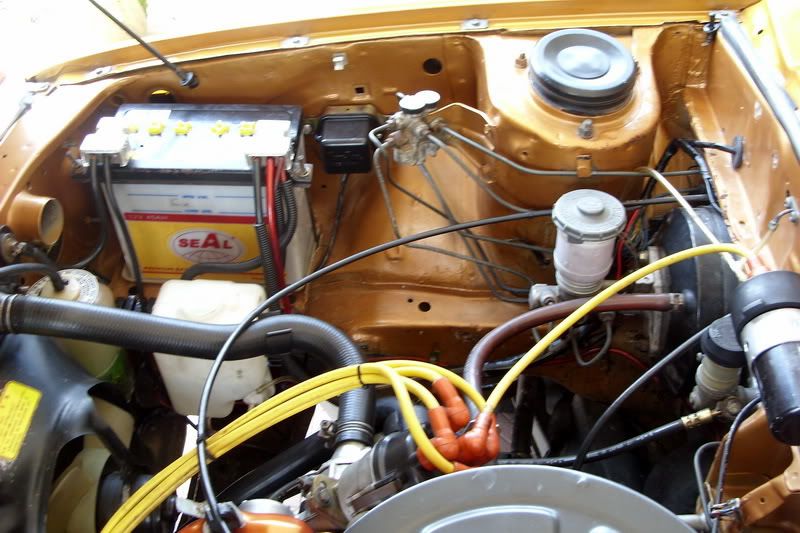

    My new horn location
